About This

• 【Two-in-One Dual Function】: Equipped with battery level monitoring and voltage monitoring functions, providing real-time feedback on the vehicle's battery status for enhanced safety and peace of mind.

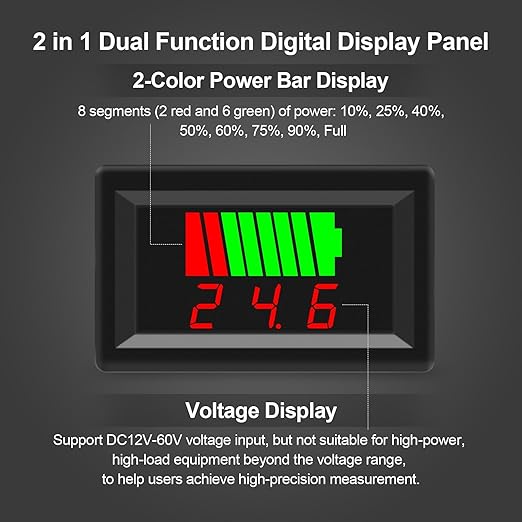

• 【HD Color LED Display】: The top battery level indicator is designed with 8 segments (2 red and 6 green) to display the battery level data. The lower part displays the real-time voltage in digital format. Intuitive and clear.
• 【Widely Applicable】: This battery indicator can be widely used for lead-acid batteries, lithium battery packs, electric vehicle batteries, etc., ranging from DC12V to 60V. However, it is not suitable for high-power, heavy-load equipment such as cranes, trucks, forklifts, etc.

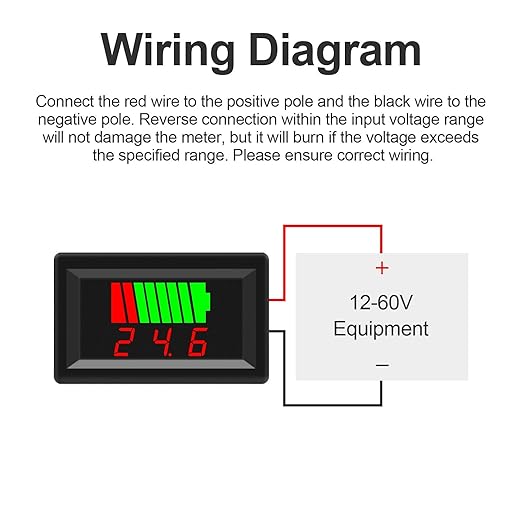

• 【Wiring instructions】: Connect the red wire to the positive pole and the black wire to the negative pole. The battery capacity voltage meter will automatically recognize voltage and power. Reverse connection within the input voltage range will not cause damage, but reverse connection outside the voltage range will burn out. Please ensure correct wiring.

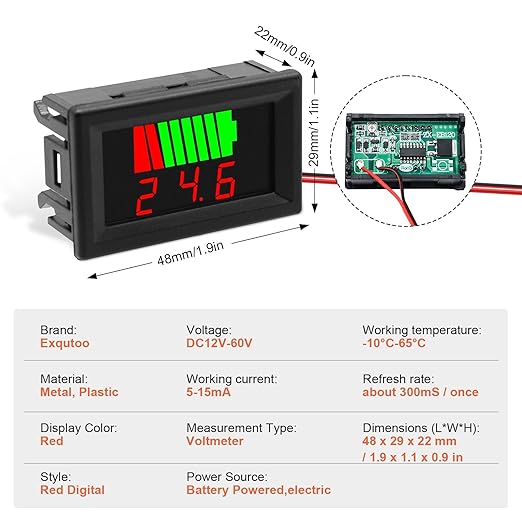

• 【Product Parameters】: Brand: Exqutoo Material: Metal, Plastic Display Color: Red Style: Red Digital Voltage: DC12V-60V Working current: 5-15mA Measurement Type: Voltmeter Power Source: Battery Powered,electric Working temperature: -10°C-65°C Refresh rate: about 300mS / once Dimensions (L*W*H): 48 x 29 x 22 mm

Overview

• Brand : Exqutoo
• Power Source : Battery Powered
• Color : Red
• Min. Operating Voltage : 12 Volts (DC)
• Upper Temperature Rating : 65 Degrees Celsius
