About This

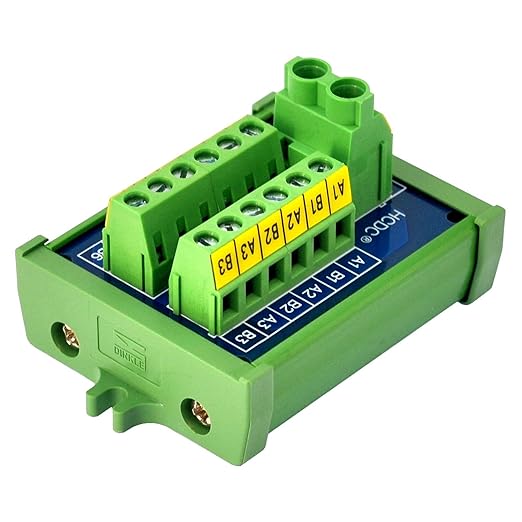

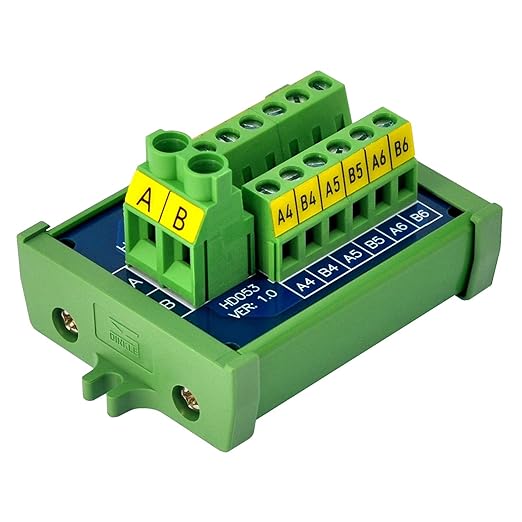

• Screw mount 30Amp 48V 2x6 position screw terminal block distribution module.
• Rated current: 30 Amp(total input or output). Maximum voltage: 48V.

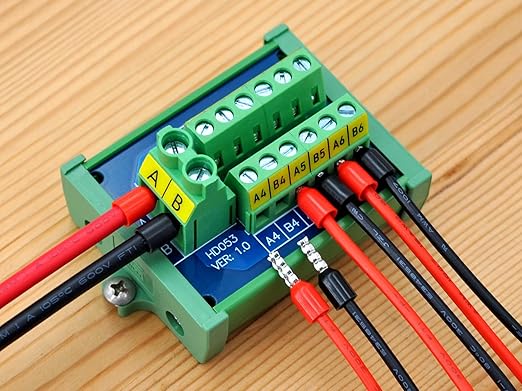

• A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

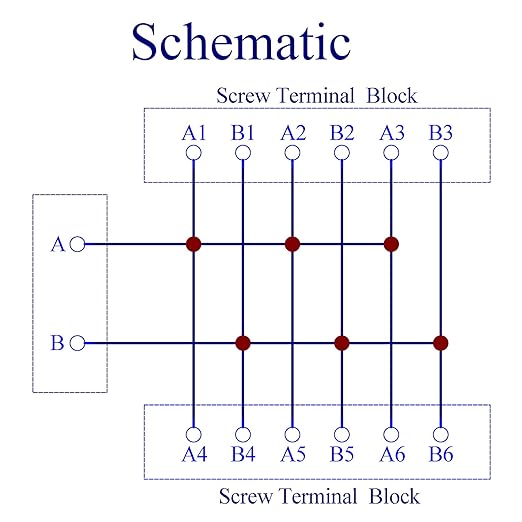

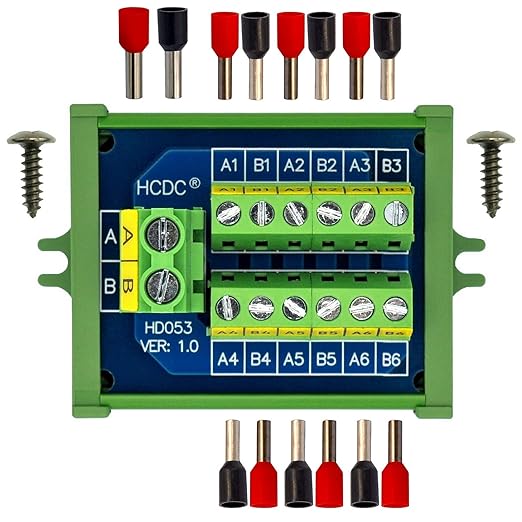

• A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• High quality fireproof nylon material mount carrier(UL CE certified, not China low quality carrier). UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.

Overview

• Current Rating : 30 Amps

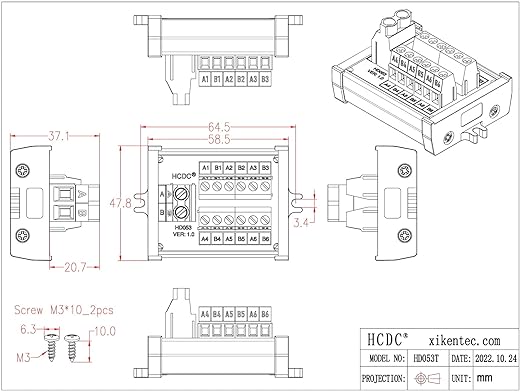

• Item Pitch : 7.62 Millimeters
• Gauge : 1
• Connector Type : Screw
• Number Of Contacts : 6

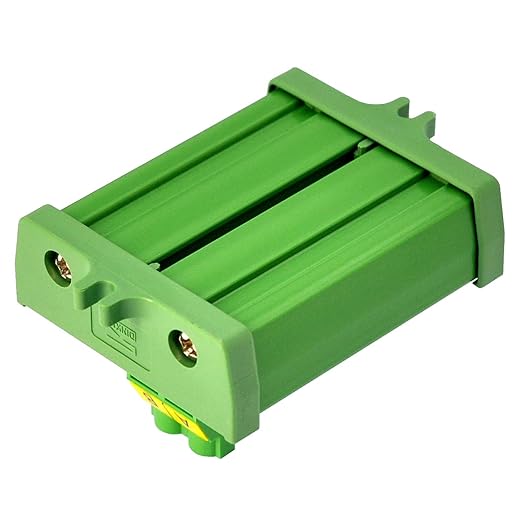

• Mounting Type : screw mount
• Material : Nylon
• Brand : HCDC
• Voltage : 48 Volts
• Number Of Poles : 6
