About This

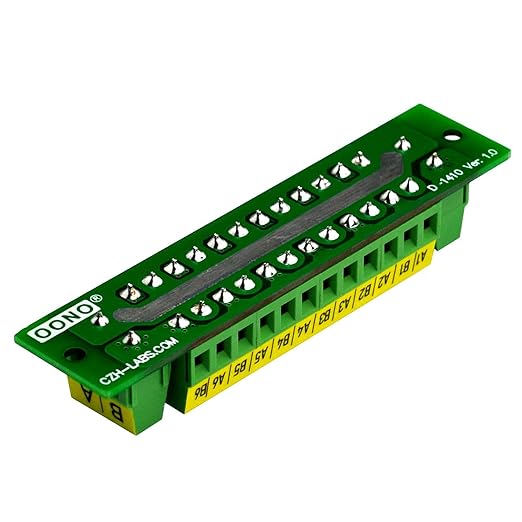

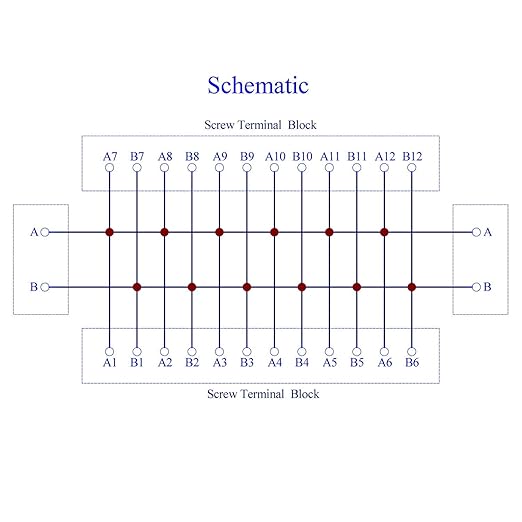

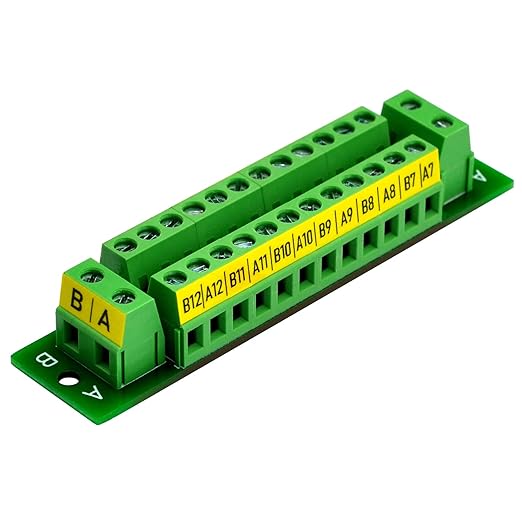

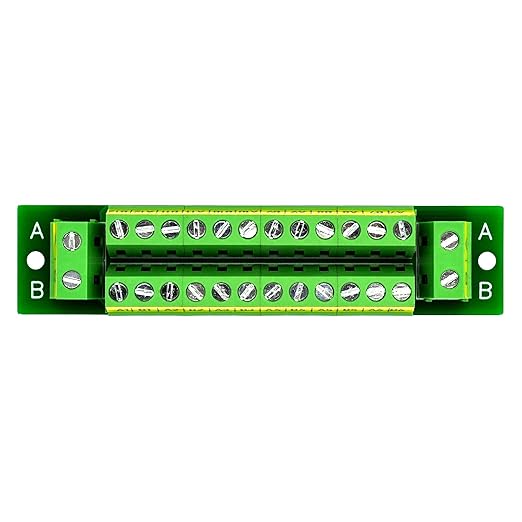

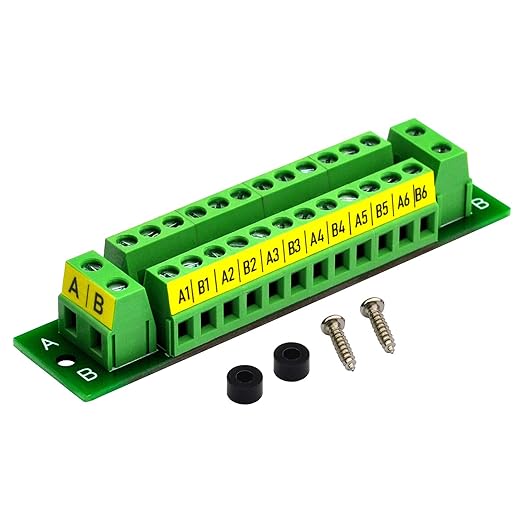

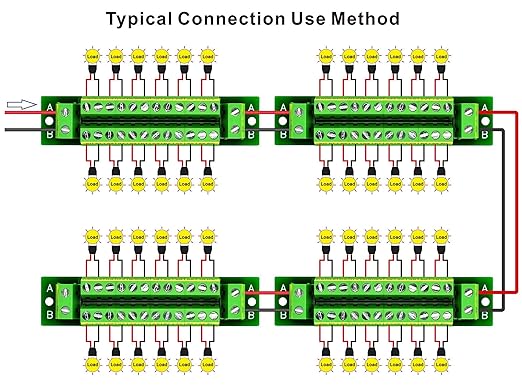

• 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
• Rated current 16 Amp(total input or output), Maximum voltage 48V
• A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.

Overview

• Current Rating : 16 Amps
• Gauge : 0.01
• Connector Type : Screw
• Number Of Contacts : 24
• Mounting Type : PCB Mount
• Material : Brass, Glass
• Brand : OONO
• Voltage : 48 Volts
• Number Of Poles : 12

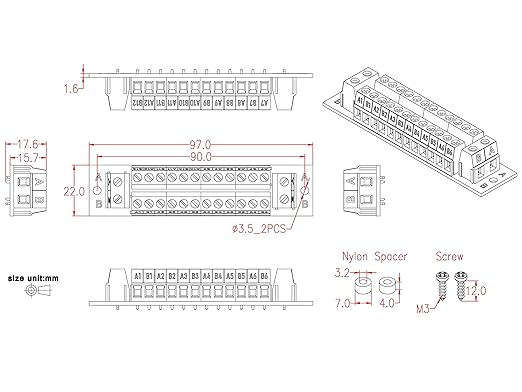

• Product Dimensions : 4.72"W x 0.97"H
