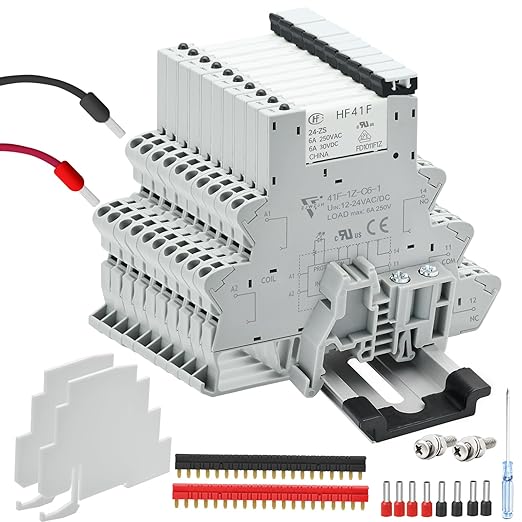

UL Listed 10Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT 6 Amp Push in Socket Screw-Free Wiring

$92.38

UL Listed 10Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT 6 Amp Push in Socket Screw-Free Wiring

$92.38

Shipping calculated at checkout.

About This

【UL Listed】 Electromagnetic Power Coil Relay through UL and VDE certification, Socket through UL / CSA and CE certification. Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

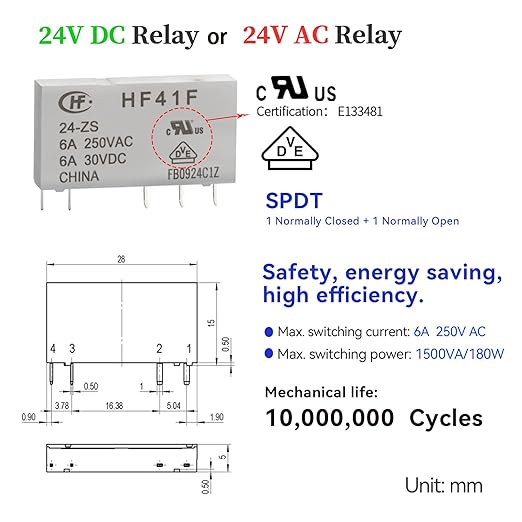

【Electromechanical Relays】Coil Voltage: 24V DC/24V AC, Both DC and AC are universal; Contact : 1 Form C(1NO+1NC), SPDT; Number of Terminals : 5 Pins; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied.

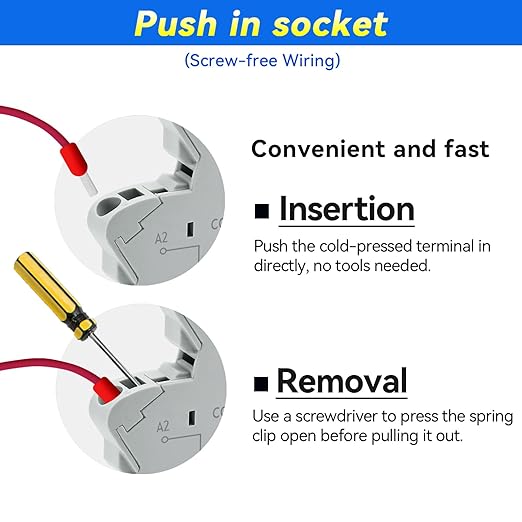

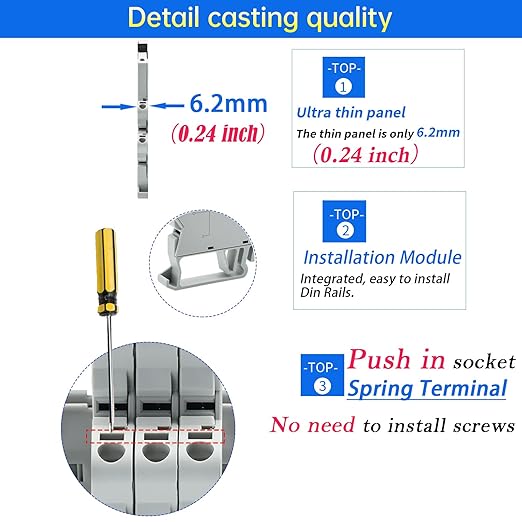

【Push in Socket】★[ Installation]: Insert the cold-pressed terminal wire directly into the round hole (screwless wiring). ★ [ Removal ]: First, poke the square hole with a screwdriver, and then the wire can be easily removed.

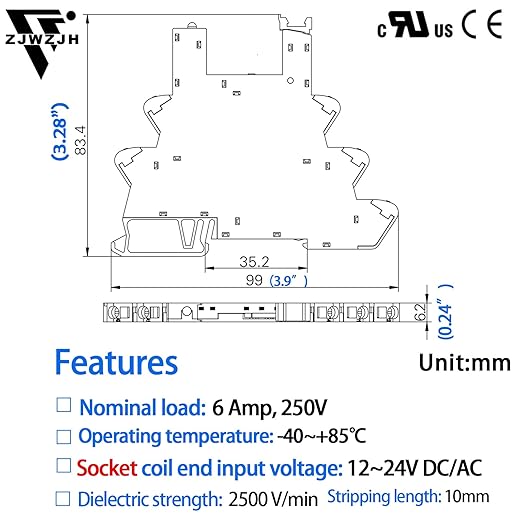

【Dimension】Relay Slim size (width 5mm), Outline size:28*5*15mm; Socket Model: 41F-1Z-C6, Size : 99*83.4*6.2mm / 3.9"*3.28"* 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07")

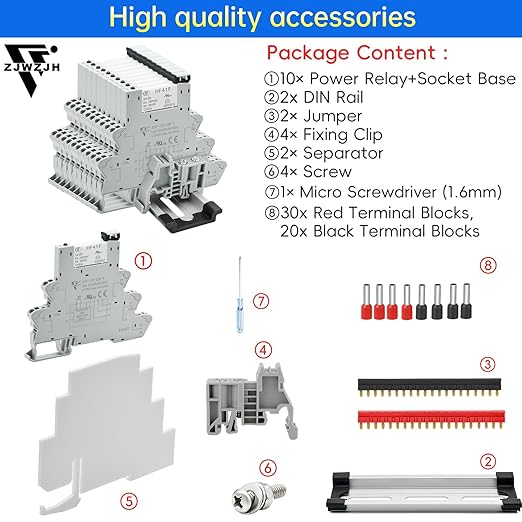

【Package】Package Content : 10 Pcs Relay and Socket; 2 * DIN Rail; 2×Jumper;2×Separator; 4 * Fixing Clip; 4 * Screw. Ambient temperature: -40℃ ~ 70℃.

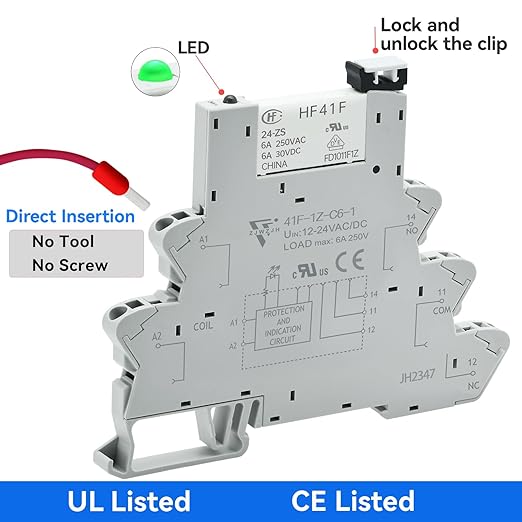

PLC Relay Systemwith Push-In Technology. Socket: Spring Loaded, Cage Clamp, Push in Socket, DIN rail mounting, with finger protection device. Apply to relay the rated voltage: (12-24)V AC/DC.
