About This

• Our 110V Relay Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

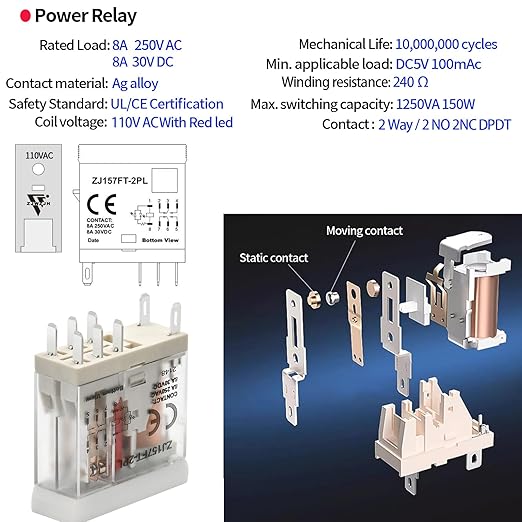

• Relay: 110V-120V AC; Contact :DPDT, 2Normally Closed + 2Normally Open 2 Poles.; rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.

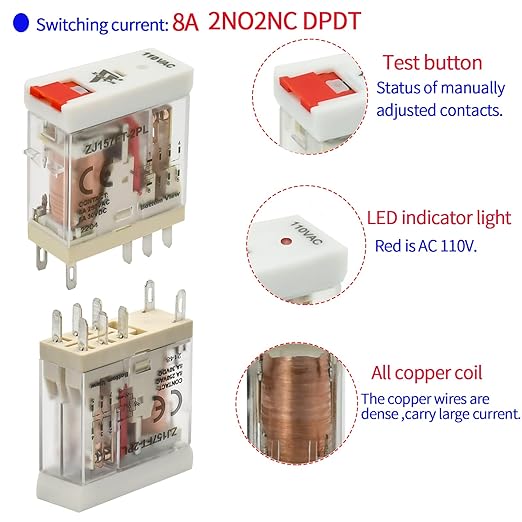

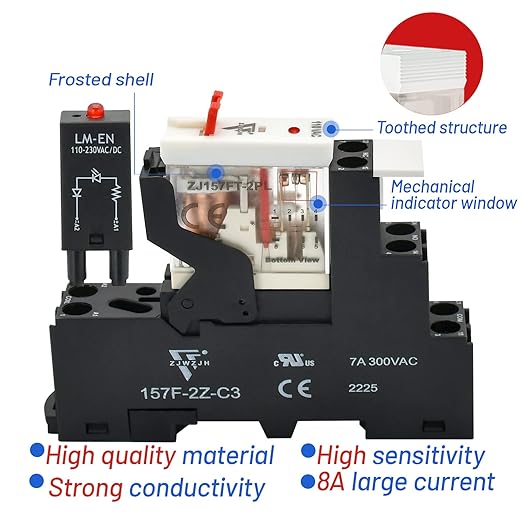

• The relay is equipped with a red LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.

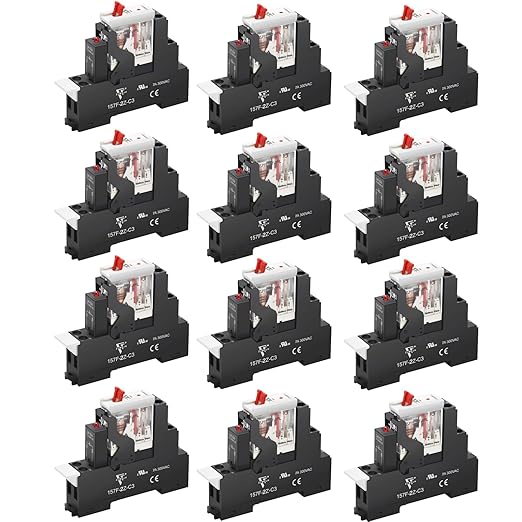

• Package: 12 Pcs Power Relay ,12 Pcs Socket, 4 x Fixing clamp , 2 x DIN Rail(20cm/7.87"), 4 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
• The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Overview

• Connector Type : Screw
• Contact Material : Silver Alloy
• Contact Type : 2no 2nc
• Mounting Type : DIN Rail Mount
• Brand : ZJWZJH
