About This

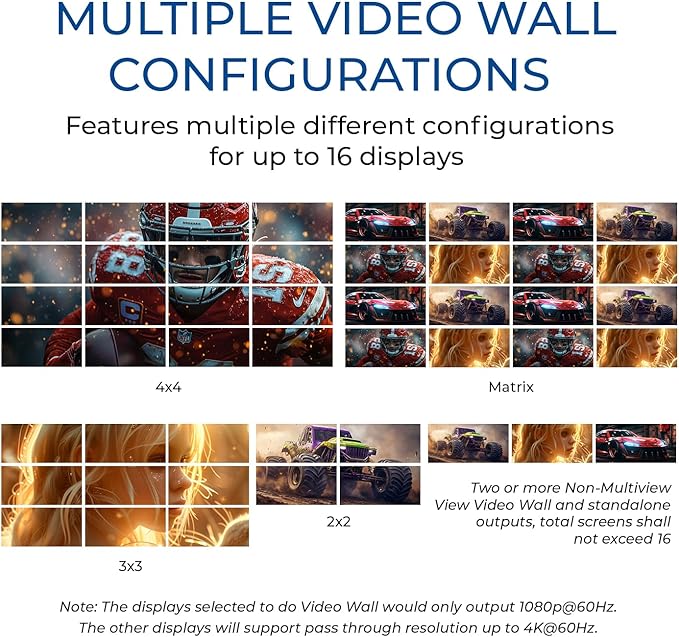

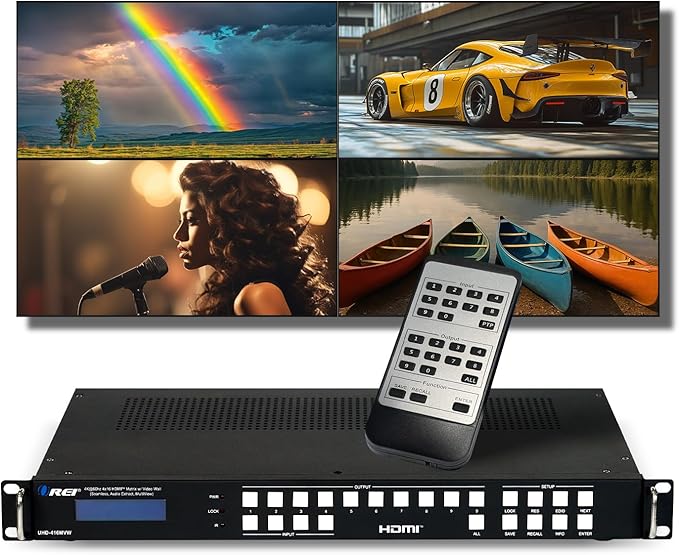

• 4×4 HDMI Multiviewer & Video Wall Controller – Integrate up to four HDMI sources (Blu-ray player, PC, laptop, gaming console, media player) and drive four displays in a variety of layouts—4×4, 4x3, 3x5, 2×2, 1×2, 2×1, 1×3, 3×1, 1×4, or 4×1 (each window at 1080i)—or switch to 4×16 Matrix Mode to send the same source or four different sources to all four 4K UHD screens; built-in bezel compensation ensures seamless edges, while advanced EDID management guarantees stable handshake and resolution compatibility.

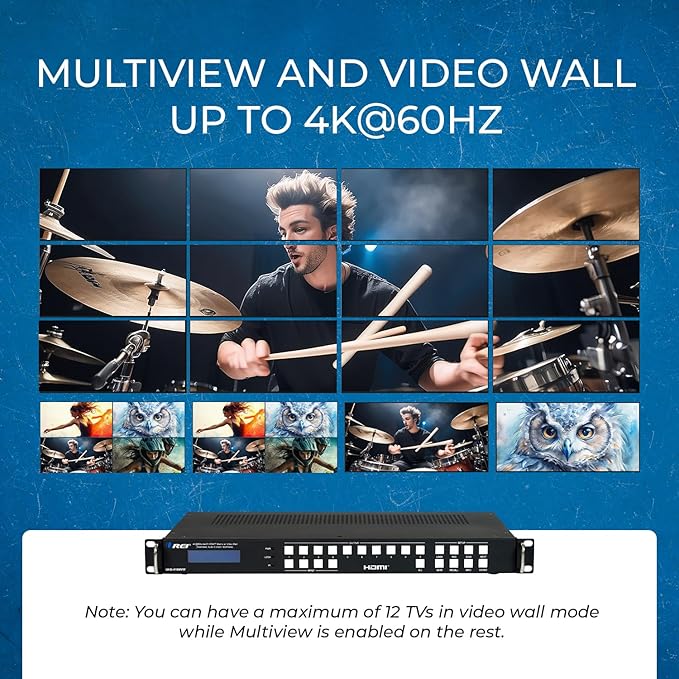

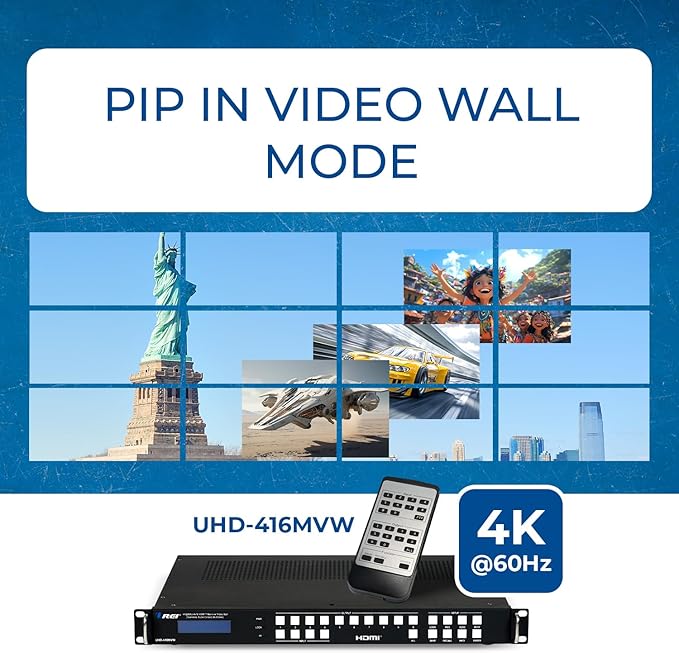

• Advanced Multi-Viewer Mode & Management – This HDMI matrix delivers flexible viewing configurations—Single, Picture-in-Picture (PIP), Dual, Triple, Quad, and custom User Mode—on a single TV or display, managed effortlessly via RS-232 control or intuitive Web GUI; supports one Multiview video wall with standalone outputs and two or more non-Multiview video walls with independent outputs, making it perfect for command centers, digital signage, broadcast studios, and corporate installations.

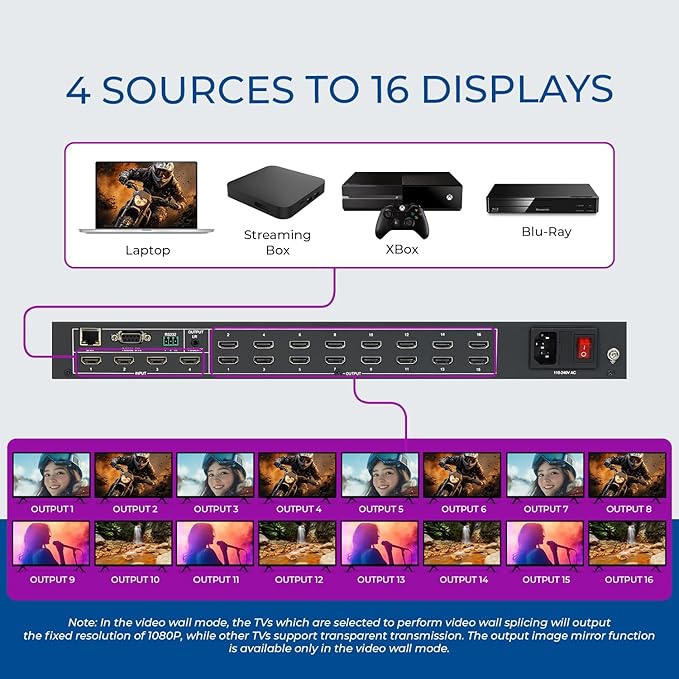

• 4×16 HDMI Matrix Switch – Supports four HDMI inputs and sixteen HDMI outputs; interlaced up to 4K@60 Hz, 4K@30 Hz, 2K@60 Hz, 1080p@60 Hz, 720p, and 1024×768@60 Hz; does not support HDR10 or Dolby Vision; HDMI outputs deliver LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24; analog L/R outputs provide PCM 2.0; SPDIF optical output supports Dolby Digital/Plus, DTS 5.1, and PCM 2.0.

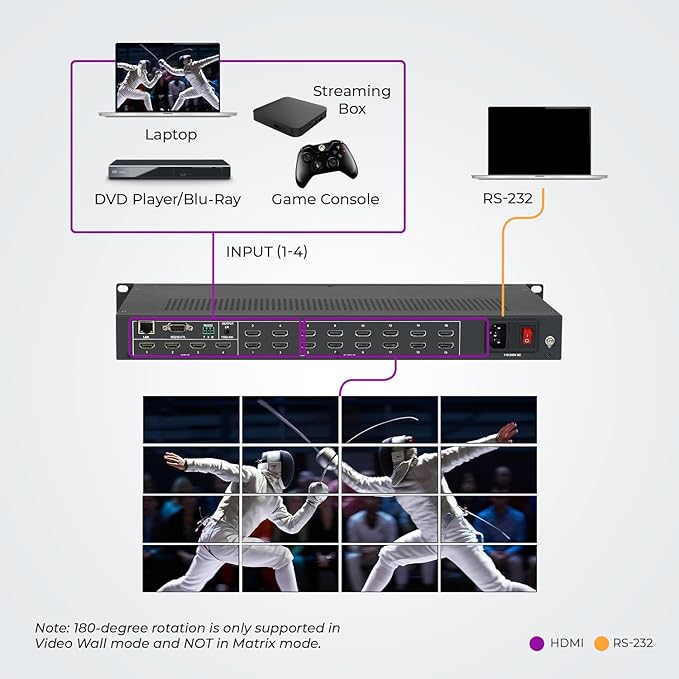

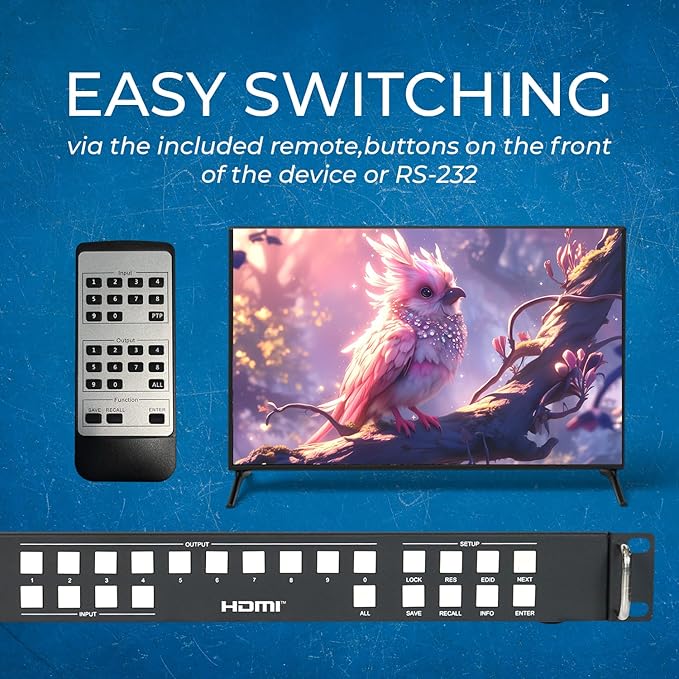

• Audio Extraction & Advanced Display Control – Extract audio through optical (SPDIF) and L/R analog outputs; in 2×2 mode, flip the upper displays 180° for ceiling-mount or inverted setups; manage all functions via the included IR remote, RS-232 commands, front-panel buttons, PC Tool, or the intuitive Web GUI. The device also comes with a dual voltage supply using a US plug, and an adapter/converter is provided for international use.

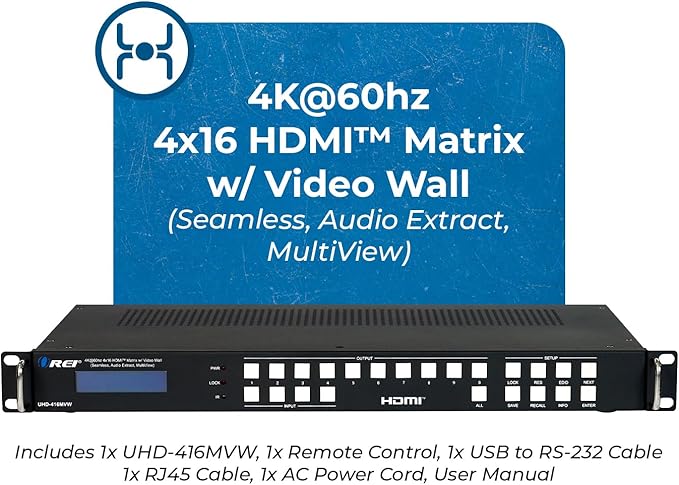

• 1 YEAR FULL WARRANTY WITH OREI SUPPORT. INCLUDES: UHD-416MVW Video Wall, Remote Control, USB to RS-232 Cable, 1x Power Adapter, Manual

Overview

• Color : Black
• Connector Type : HDMI
• Brand : OREI
• Compatible Devices : Blu-Ray Player, DVD Player, Laptop, PC, Projector
• Cable Type : HDMI
