About This

• [ UL Listed ] Our 24V Relay Power Relay through UL listed and CE listed. Relay's point dynamic test key can be used to manually change the contact state.

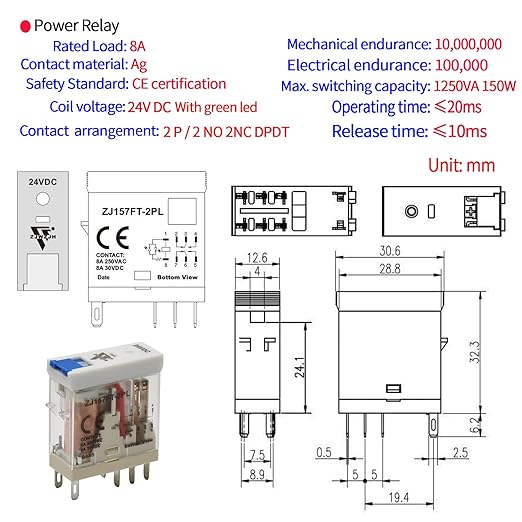

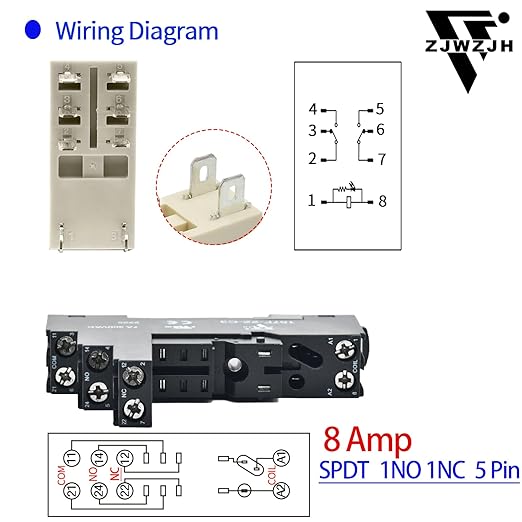

• 24VDC Relay;Contact : 2-Ways DPDT, 2Normally Closed + 2Normally Open 2 Poles; rated carry current: 8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.

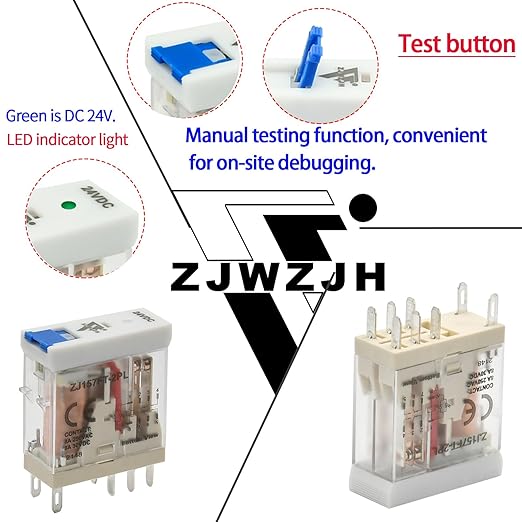

• The relay is equipped with a green LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.

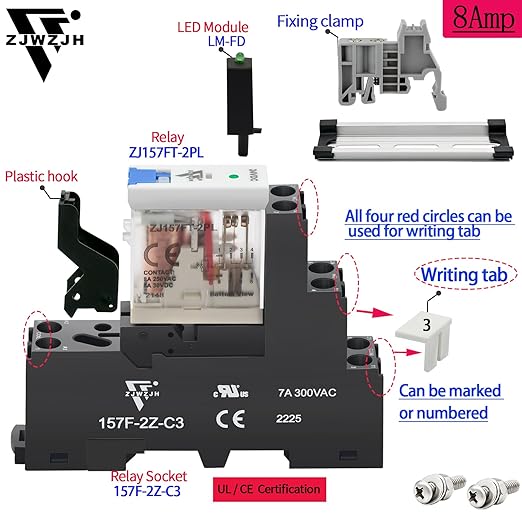

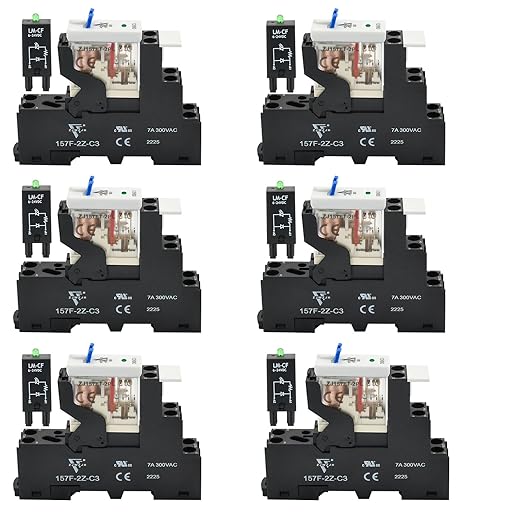

• Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
• The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Overview

• Connector Type : Screw
• Contact Material : Silver Alloy
• Contact Type : 2 Normally Open
• Current Rating : 8 Amps
• Mounting Type : DIN Rail Mount
