6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
$82.48
Sale price
$82.48
Regular price
6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
$82.48
Sale price
$82.48
Regular price
Shipping calculated at checkout.
About This
- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

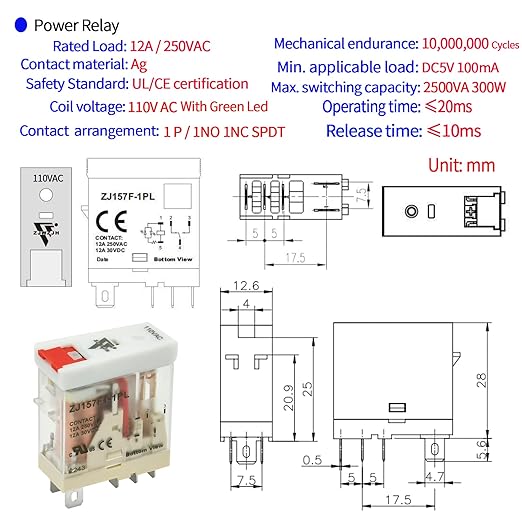

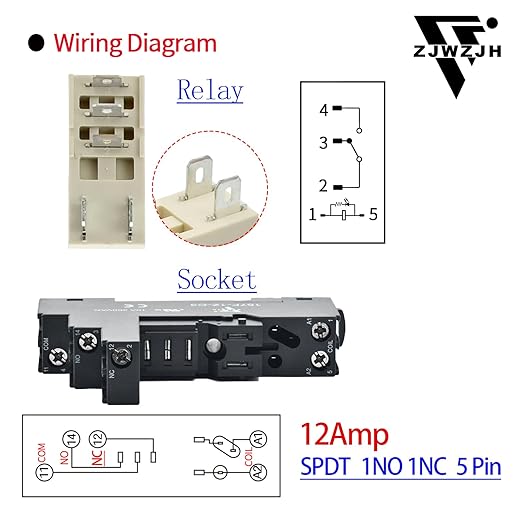

- Rated carry current:12 Amps; Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:1NO1NC DPDT 1 Poles.

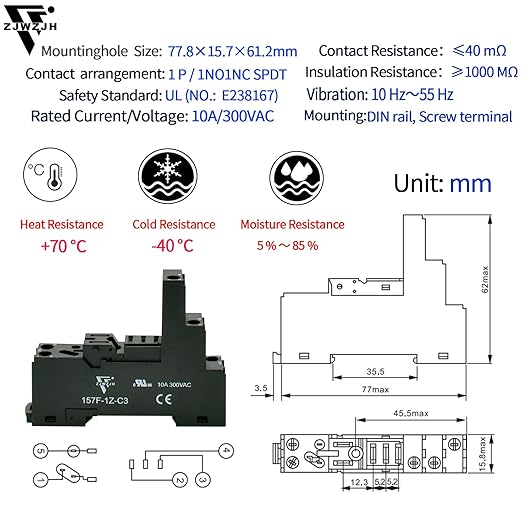

- Relay voltage: 110V-120V AC, LED light module: 110-230V AC/DC. Socket Safety Standard:UL (NO.: E238167) ; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

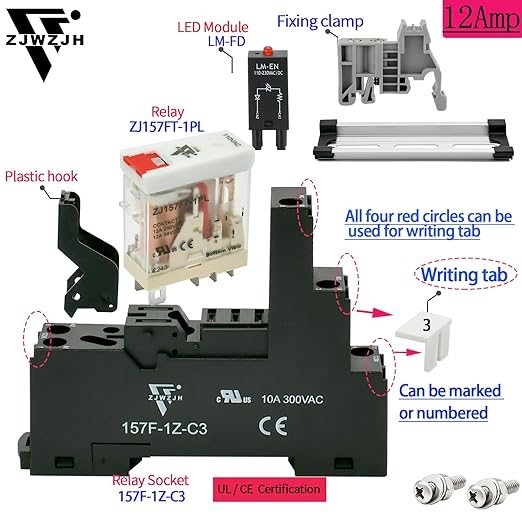

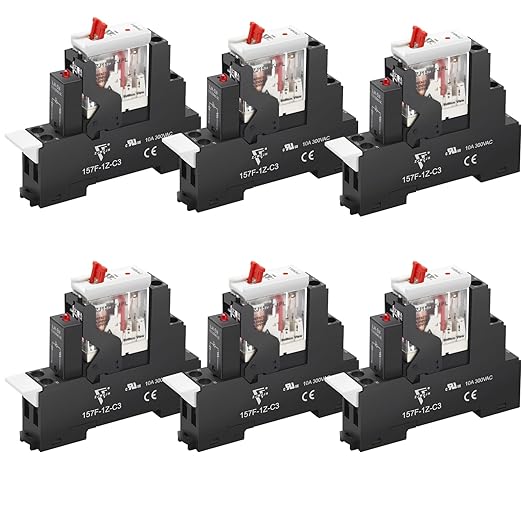

- Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

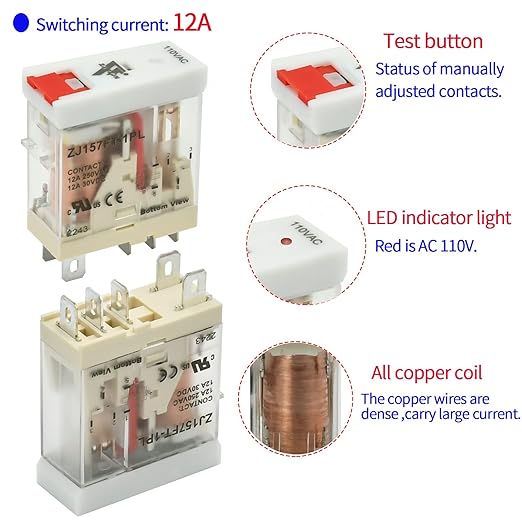

- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Overview
- Connector Type : Screw
- Contact Material : Silver
- Contact Type : Spdt
- Current Rating : 12 Amps
- Mounting Type : DIN Rail Mount
