Electromagnetic Relay 5VDC SPDT 6Amp, Power Relays with LED Indicator, Socket Base, DIN Rail, Ultra Thin 6.2mm, UL Certification

$16.48

Electromagnetic Relay 5VDC SPDT 6Amp, Power Relays with LED Indicator, Socket Base, DIN Rail, Ultra Thin 6.2mm, UL Certification

$16.48

Shipping calculated at checkout.

About This

【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

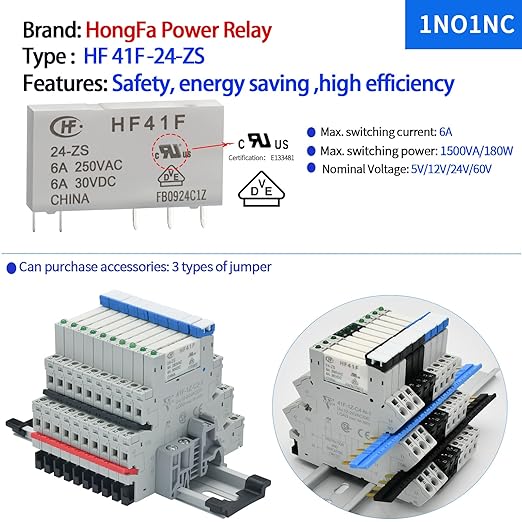

【 Relays】Relay Coil Voltage: 5V DC , Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

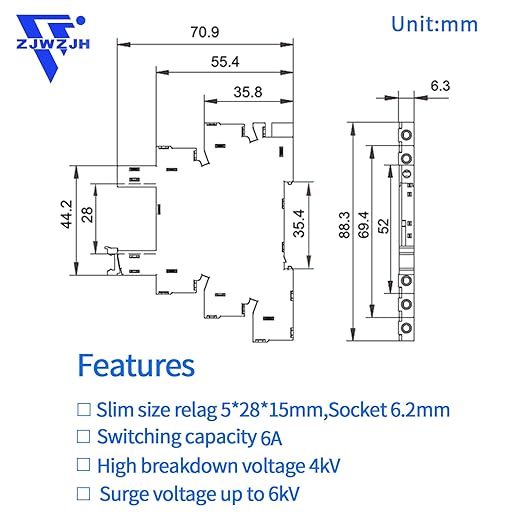

【Dimension】Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (5)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

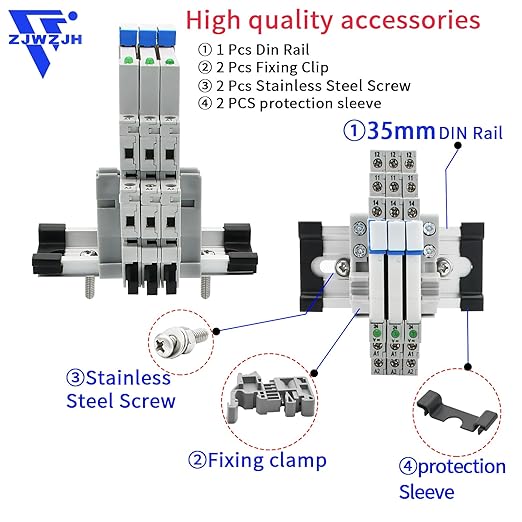

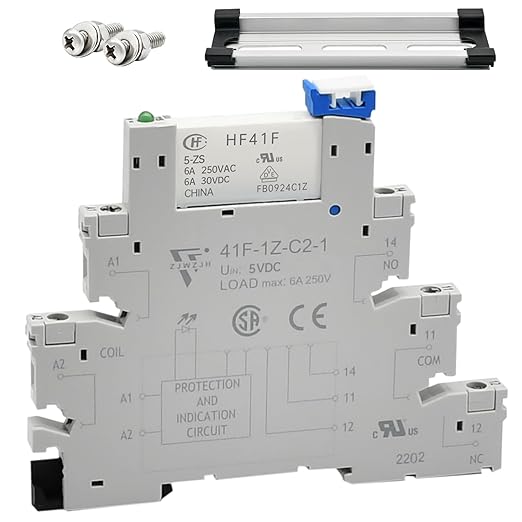

【Package】Package Content : 1× Power Relay; 1× Relay Socket Base; 1x DIN Rail;2×Screw.Ambient temperature: -40℃ ~ 70℃.
