About This

• 1. DIN Rail optional 16 channels relay interface modules.
• 2. 1 NO&NC independent relay module.
• 3. Switching current upto 10A at 250VAC or 30VDC

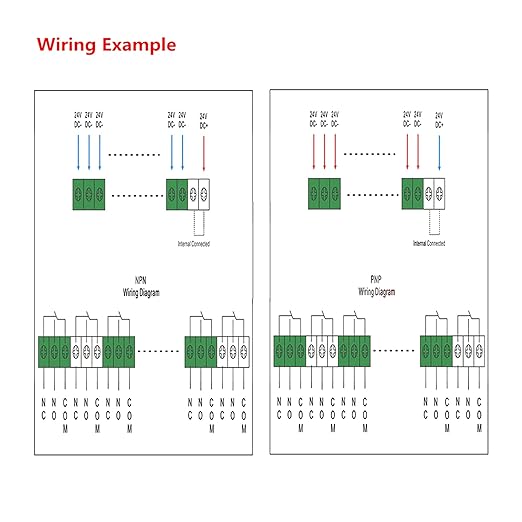

• 4. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use.

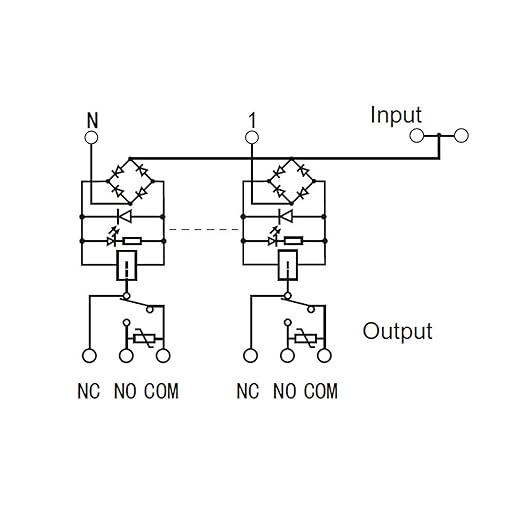

• 5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel.

Overview

• Connector Type : Screw
• Contact Material : Silver
• Contact Type : Normally Open, Normally Closed
• Current Rating : 10 Amps
• Mounting Type : DIN Rail Mount, Panel Mount
