ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V)

ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V)

$16.48
$16.48
ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V)

ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V)

$16.48
$16.48
Shipping calculated at checkout.

About This

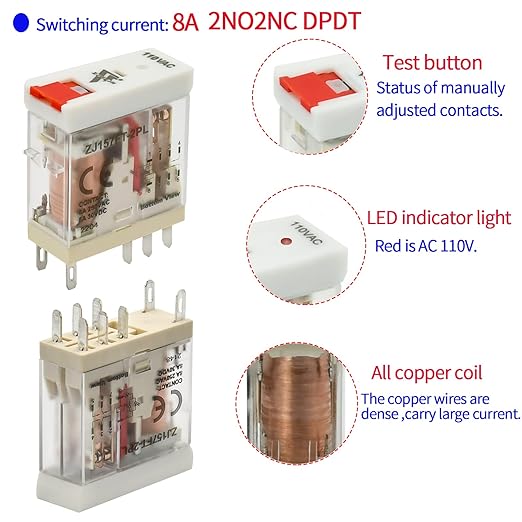

  • Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

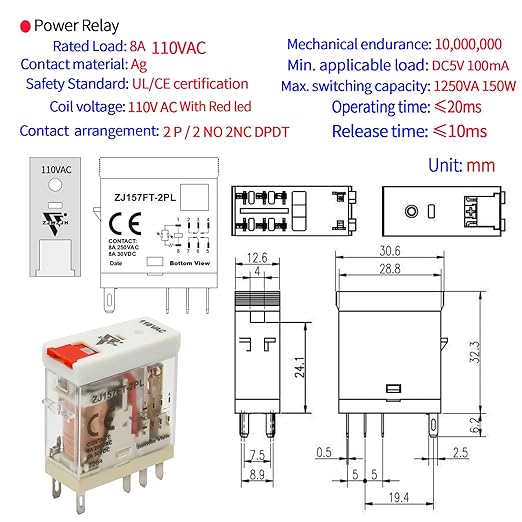

  • Coil Voltage:110/120V AC, Coil Resistance: 1100Ω. Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO2NC DPDT 2 Poles.

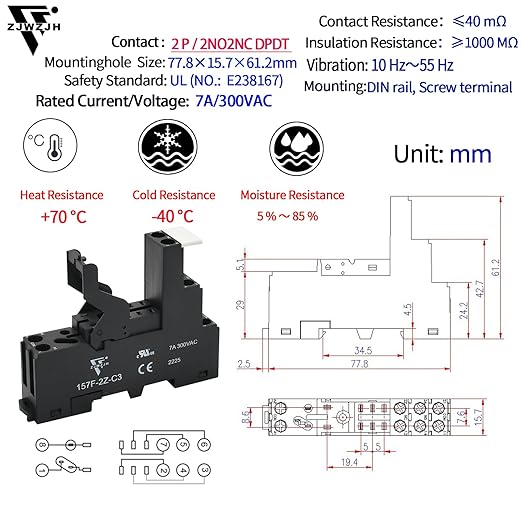

  • Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

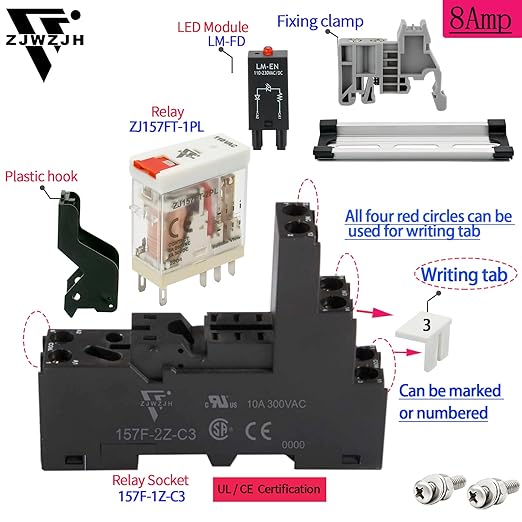

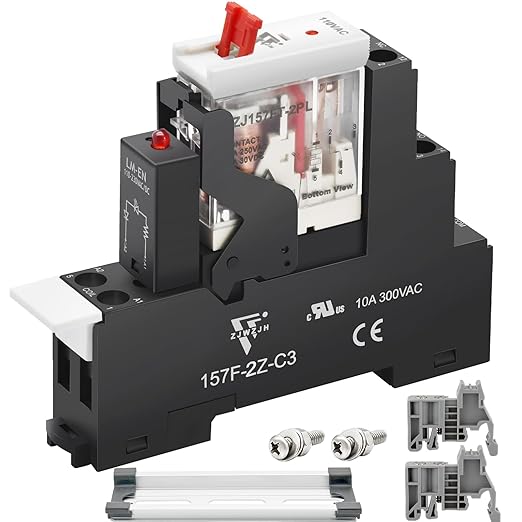

  • Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

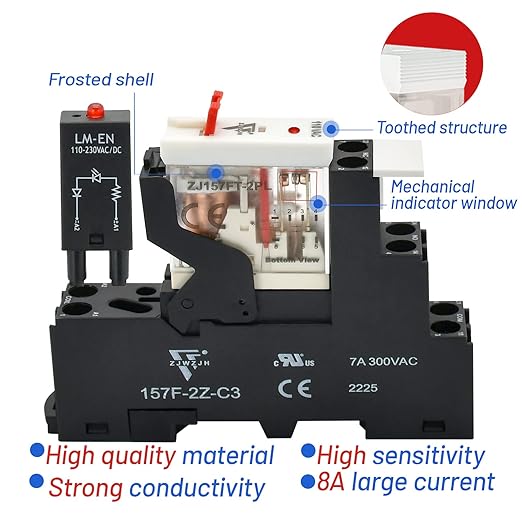

  • The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Overview

  • Connector Type : Screw
  • Contact Material : Silver Alloy

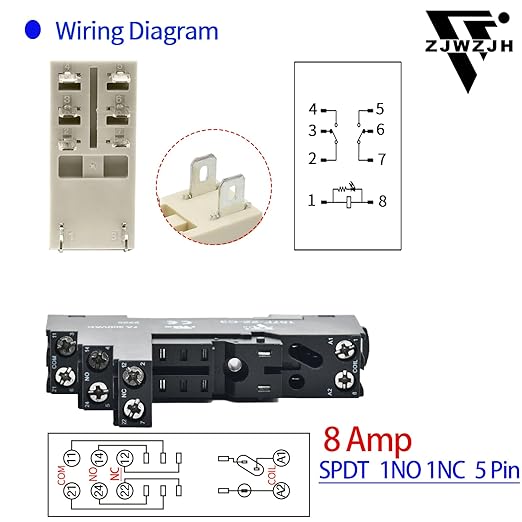

  • Contact Type : 2no 2nc,dpdt
  • Current Rating : 8 Amps
  • Mounting Type : DIN Rail Mount
