About This

• Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

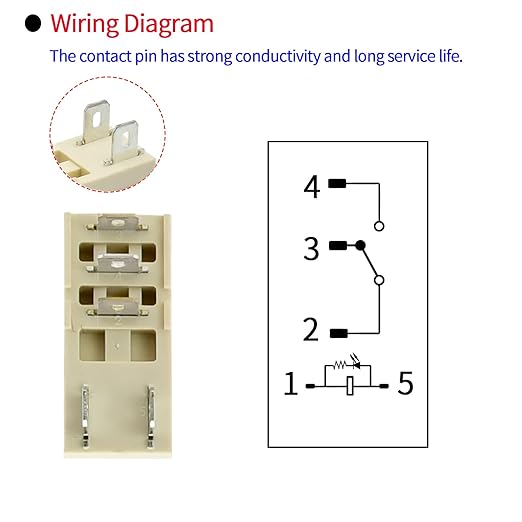

• Rated current: 12 Amps. Contact:1-way 1NO 1NC SPDT 5 Pin 1 Poles. Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
• Relay voltage: 6VDC, LED light module: 6-24V DC

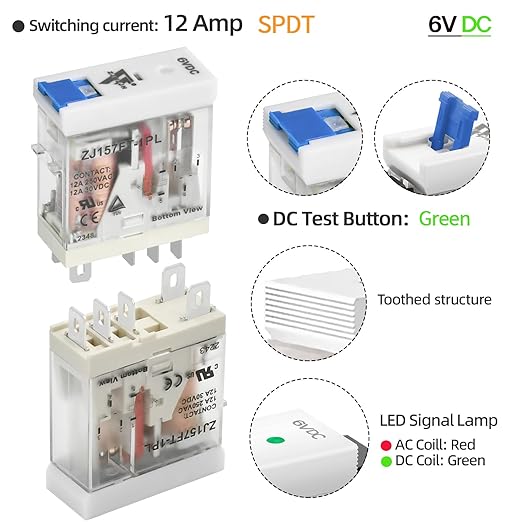

• The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

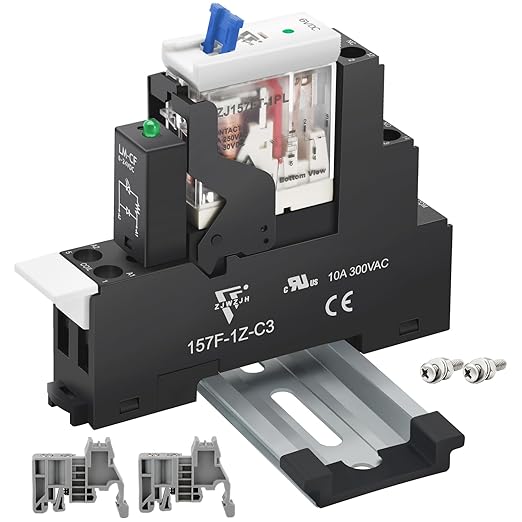

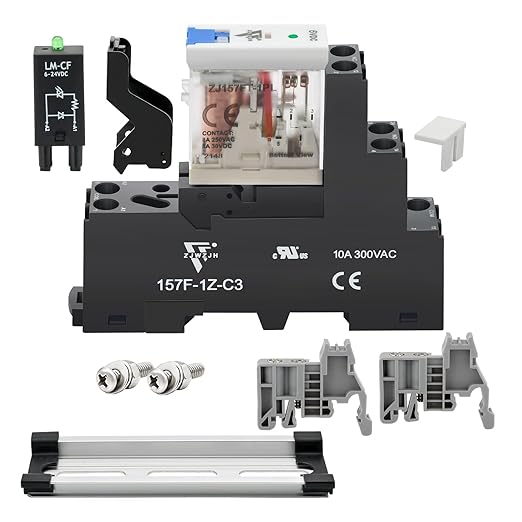

• Package Content : 1 x Porwe Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

Overview

• Connector Type : Screw
• Contact Material : Silver
• Contact Type : 1no 1nc
• Current Rating : 12 Amps
• Mounting Type : DIN Rail Mount
