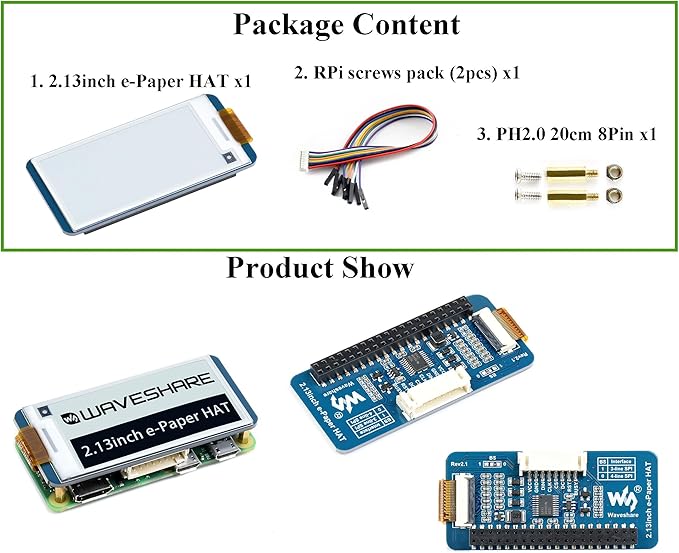

2.13inch E-Ink Display HAT V4 Version, Black/White Two-Color 250x122 Pixel E-Paper Module for Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Support Partial Refresh

$36.42

2.13inch E-Ink Display HAT V4 Version, Black/White Two-Color 250x122 Pixel E-Paper Module for Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Support Partial Refresh

$36.42

Shipping calculated at checkout.

About This

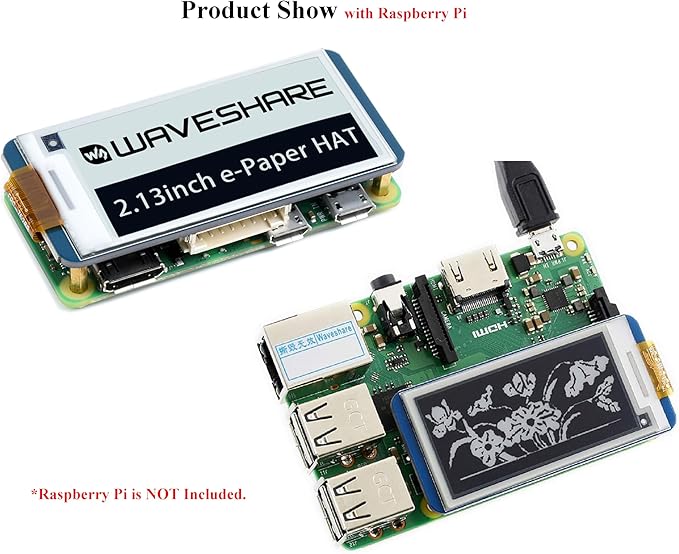

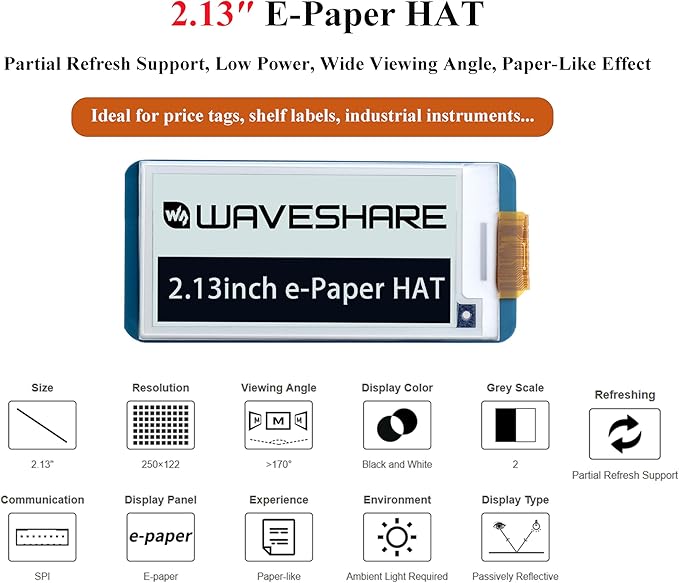

This is 2.13inch E-Ink display HAT with Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards, Jetson Nano. 250x122 resolution, Black and White Two Display colors, with embedded controller, communicating via SPI interface, supports partial refresh.

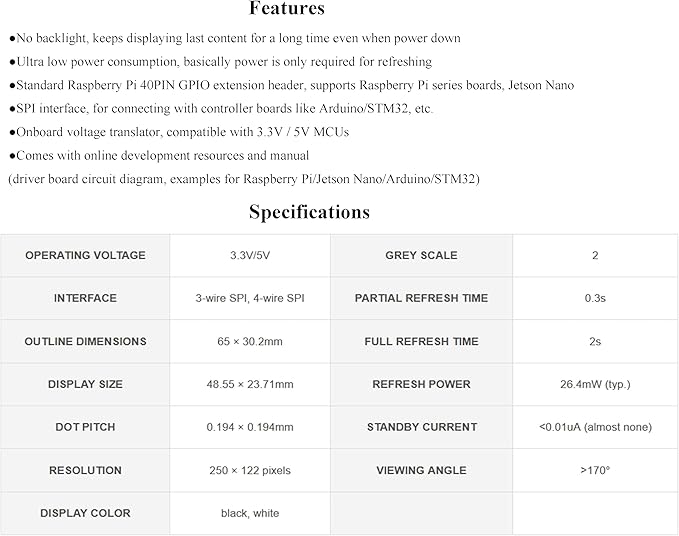

No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

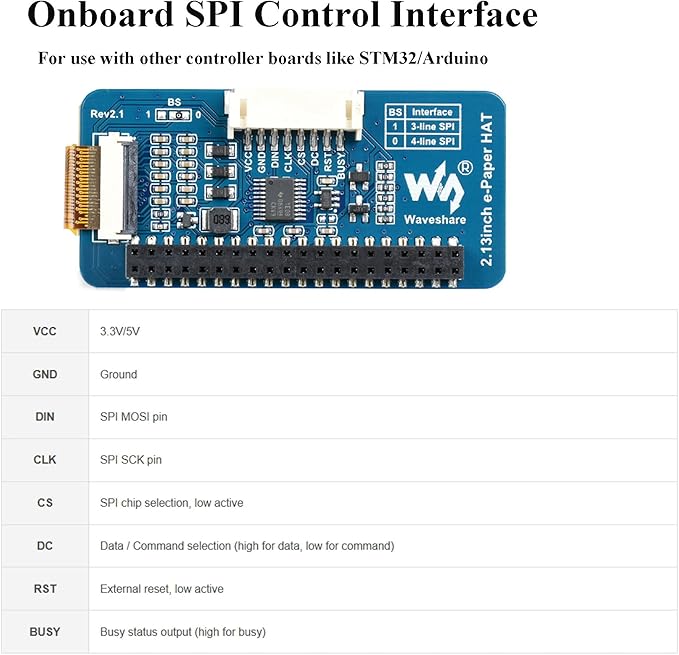

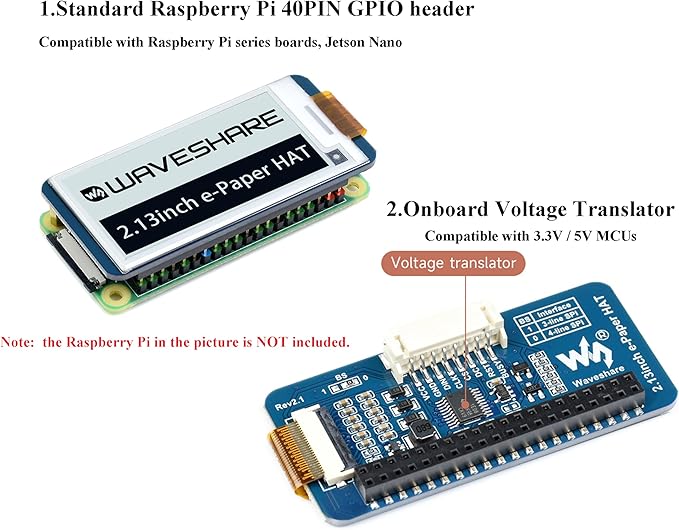

SPI interface, for connecting with controller boards likeArduino/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs.

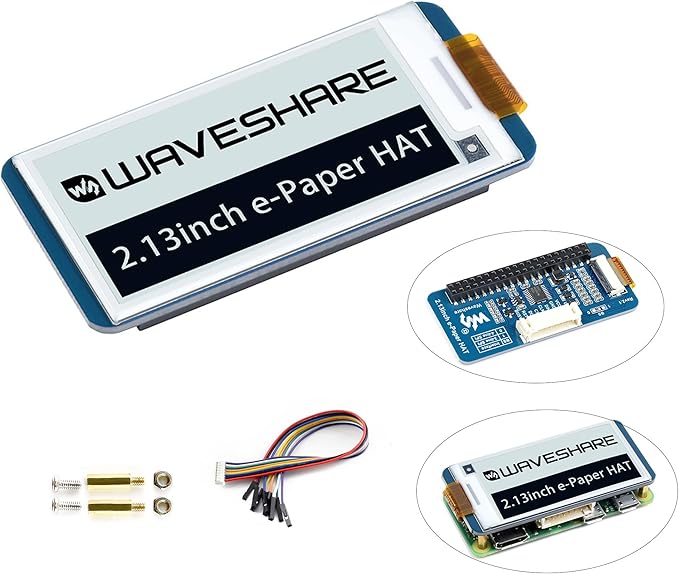

Version Notice: The driver board is Rev2.1 (Version 2.1), which is independent of the screen version. Currently, there is only Rev2.1 (Version 2.1) for the driver board and QC label V4 is for the screen version, QC label V4 is currently being shipped.

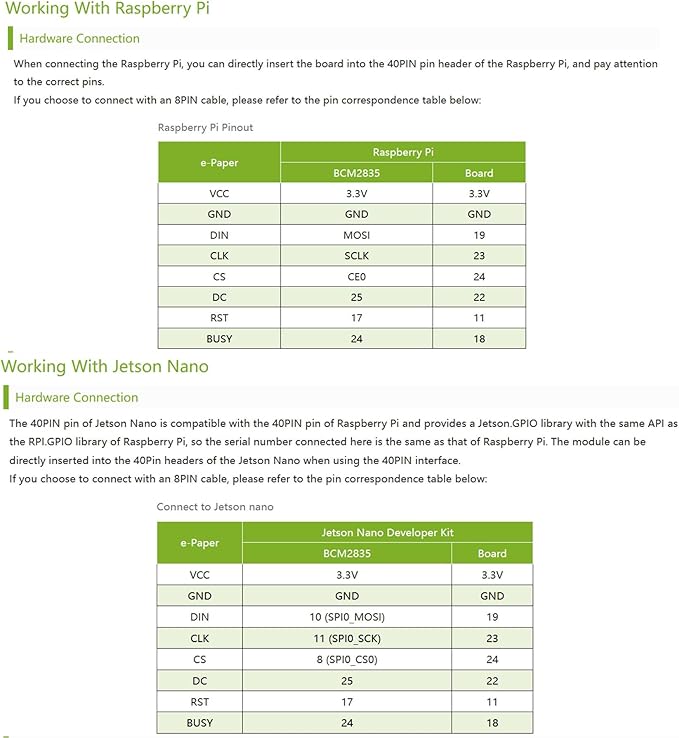

Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32): bit.ly/3hZh77i
