About This

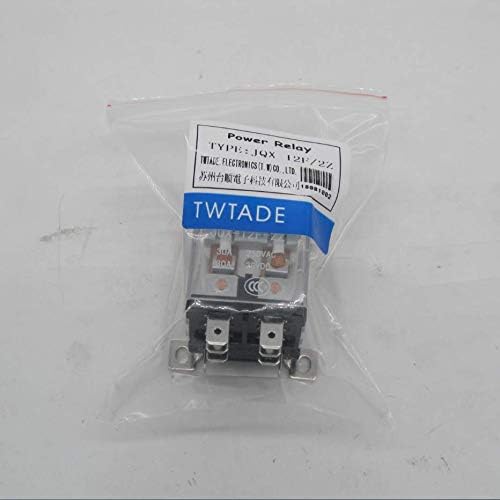

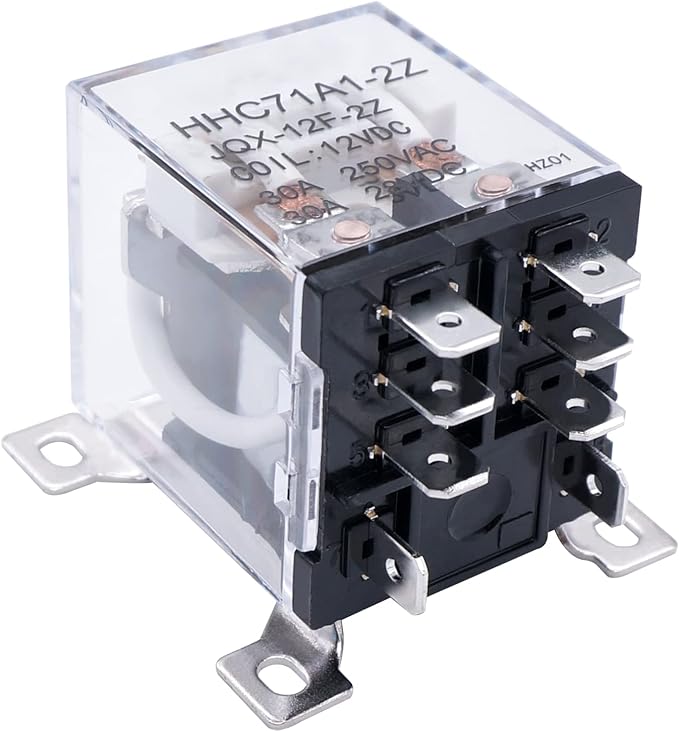

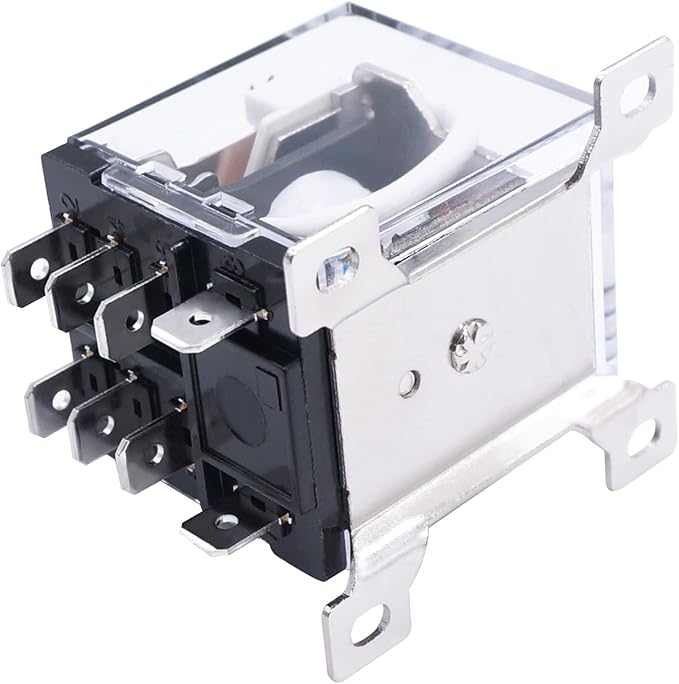

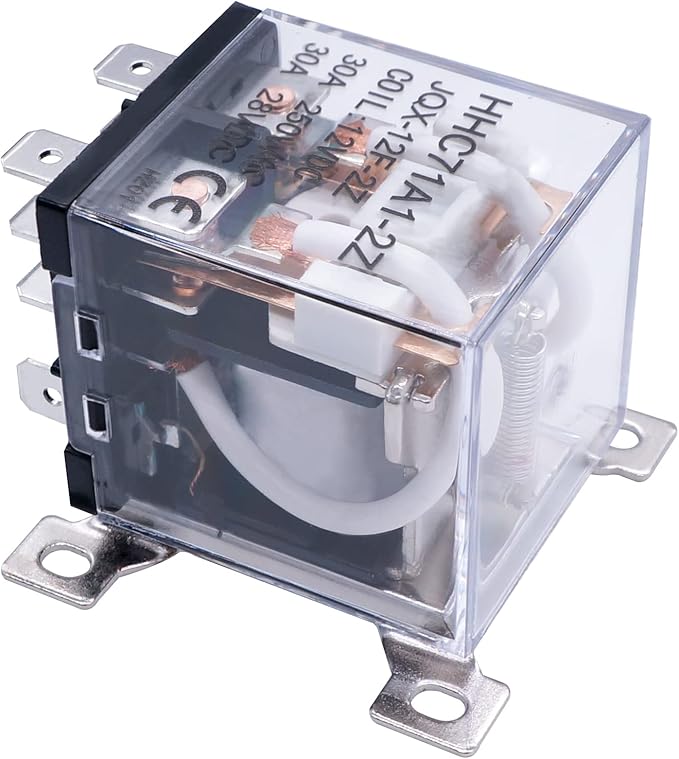

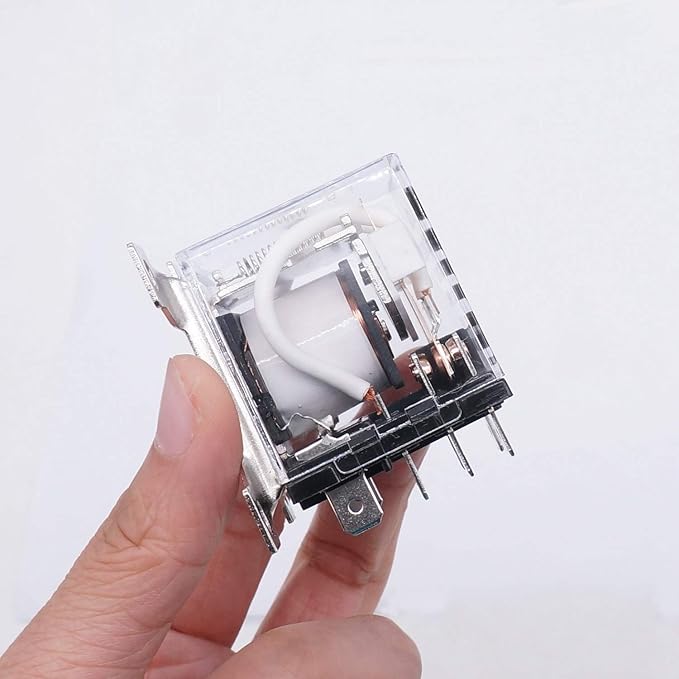

• Product Name : Power Relay;Model : JQX-12F-2Z; Contact : DPDT 2NO+2NC
• Wiring description For example: 1,3,5 This contact, 3 and 5 are normally open, 1 and 5 are normally closed;Pin Number : 8; Coil Voltage : DC 24V; Contact : 30A 250V AC / 28V DC
• Body Size(not included pin) : 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T);Total Height : 4.8cm / 1.6";Installing Hole Size : 0.48 x 0.35cm / 0.19"x 0.14"(L*W)
• Installing Hole Distance(center) : 3.85 x 3.78cm / 1.52" x 1.49"(L*W);Material : Plastic, Metal;Color : See the Picture
• Weight : 93g;Package Content : 1 x Power Relay

Overview

• Connector Type : Solder
• Contact Material : Silver
• Contact Type : Normally Open, Closed
• Current Rating : 30 Amps
• Mounting Type : Panel Mount
